Common content interface. More...

#include <DAFFContent.h>

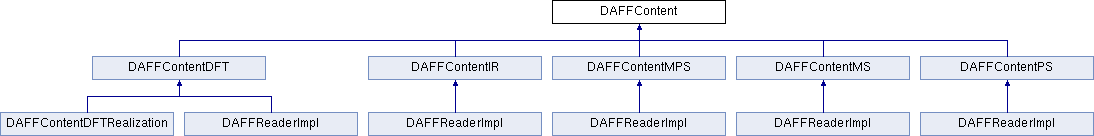

Inheritance diagram for DAFFContent:

Public Member Functions
virtual	~DAFFContent ()

virtual DAFFReader *	getParent () const =0
	Returns the parent reader. More...

virtual const DAFFProperties *	getProperties () const =0
	Returns the properties. More...

virtual const DAFFMetadata *	getRecordMetadata (int iRecordIndex) const =0
	Returns the metadata of a record. More...

virtual int	getRecordCoords (int iRecordIndex, int iView, float &fAngle1Deg, float &fAngle2Deg) const =0
	Determines the spherical coordinates of a record (grid point on spherical regular grid) More...

virtual void	getNearestNeighbour (int iView, float fAngle1Deg, float fAngle2Deg, int &iRecordIndex) const =0
	Determine the nearest neighbour record and return its index. More...

virtual void	getNearestNeighbour (int iView, float fAngle1Deg, float fAngle2Deg, int &iRecordIndex, bool &bOutOfBounds) const =0
	Determine the nearest neighbour record and return its index (with boundary validatsion) More...

virtual void	getCell (int iView, float fAngle1Deg, float fAngle2Deg, DAFFQuad &qIndices) const =0
	Determines the cell of a given direction on the sphere grid and delivers its surrounding record indices. More...

virtual void	transformAnglesD2O (float fAlphaDeg, float fBetaDeg, float &fAzimuthDeg, float &fElevationDeg) const =0
	Transforms data spherical coordinates into object spherical coordinates. More...

virtual void	transformAnglesO2D (float fAzimuthDeg, float fElevationDeg, float &fAlphaDeg, float &fBetaDeg) const =0
	Transforms object spherical coordinates into data spherical coordinates. More...

Detailed Description

Common content interface.

This purely abstract class defines the common interface for DAFF content. Special (non-common) attributes of content are defined in subinterfaces (e.g. DAFFContentIR or DAFFContentMS).

The interface covers operations on the sphere grid, like nearest neighbour search, cell determination, etc. as well as spherical coordinate transformations.

See also: DAFFContent; DAFFContentDFT; DAFFContentIR; DAFFContentMPS; DAFFContentMS; DAFFContentPS

Definition at line 40 of file DAFFContent.h.

Constructor & Destructor Documentation

virtual DAFFContent::~DAFFContent ( )

inlinevirtual

Definition at line 43 of file DAFFContent.h.

Member Function Documentation

virtual void DAFFContent::getCell	(	int	iView,
		float	fAngle1Deg,
		float	fAngle2Deg,
		DAFFQuad &	qIndices
	)		const

pure virtual

Determines the cell of a given direction on the sphere grid and delivers its surrounding record indices.

This method takes a direction in form of an angular pair and searches for the valid surrounding grid points which are related to a record. In a full covered sphere, this means a rectangular cell at any point except of the area near the poles, where we obtain triangular cells. Nevertheless, the method will return four valid record indices in any given case. It makes heavy use of the getNearestNeighbour method (which does not make it that fast) and is invented for custom interpolation purposes.

Sequence convention

Imagine you are sitting at the origin of the sphere and you point in a random direction. What you prickle will be a cell similar to this one:

(3)--—(2) | | | | ^ (4)--—(1) | (direction beta increases)

<--

(direction alpha increases)

The first index will always be the lower grid point of both given angles, the second is the first point increased by the beta resolution at beta angle. The third point is represented by both the increase of the alpha and beta angle each with their resolution steps. The fourth point is the first point only with an increase by alpha resolution of the alpha angle.

Let's discuss an example: Requested direction: alpha = 2°, beta = 2° object view coordinate system (front direction would be 0°,0°) Resolution: alpha = 10°, beta = 5° Index1 -> alpha = 0°, beta = 0° (object view) Index2 -> alpha = 0°, beta = 5° (object view) Index3 -> alpha = 10°, beta = 5° (object view) Index4 -> alpha = 10°, beta = 0° (object view)

Special cases

if a pole is directly hitten and the full sphere is covered, it will return 4 times the pole's record index.
if the requested direction is near a pole or out of boundaries, the method will simply search for the nearest neighbouring directions for each of the four cell points as if the cell would exists on a regular sphere grid. This will result in the return of at least two indices indicating the same record. You most certainly will discover something like that near north pole

(3,2) / \ / \ (4)-—(1)
```
or that near south pole
```

(3)-—(2) \ / \ / (4,1)

or, if out of bounds, something similar to

(3,4)--—(1,2)

or

(3,2)
  |
  |
(4,1)

Anyway, using getCell out of the boundaries does not make that much sense. In case you run
out of bounds onsider using getNearestNeighbour with boundary flag instead.

Parameters

[in]	iView	View, one of DAFF_VIEWS
[in]	fAngle1Deg	Angle of first value in degree
[in]	fAngle2Deg	Angle of first value in degree
[out]	qIndices	Quad struct with index values

Implemented in DAFFContentDFTRealization, and DAFFReaderImpl.

virtual void DAFFContent::getNearestNeighbour	(	int	iView,
		float	fAngle1Deg,
		float	fAngle2Deg,
		int &	iRecordIndex
	)		const

pure virtual

Determine the nearest neighbour record and return its index.

This method takes a direction in form of an angular pair and searches the grid for the nearest neighbouring record (grid point). The distance measure is the angle on the great circle (spherical law of cosines).

Note: The method always returns a valid record index, even if the angular pair points outside the spherical grid (e.g. consider boundaries). Thereby we maintain a consistent behaviour. You can check if the point was within the boundaries using the bOutOfBounds argument.

Parameters

[in]	iView	The view that should be used for the given pair of angles, one of DAFF_VIEWS
[in]	fAngle1Deg	First angle (Phi or Alpha, depending on view)
[in]	fAngle2Deg	Second angle (Theta or Beta, depending on view)
[out]	iRecordIndex	Index that corresponds to this pair of angles

Implemented in DAFFContentDFTRealization, and DAFFReaderImpl.

virtual void DAFFContent::getNearestNeighbour	(	int	iView,
		float	fAngle1Deg,
		float	fAngle2Deg,
		int &	iRecordIndex,
		bool &	bOutOfBounds
	)		const

pure virtual

Determine the nearest neighbour record and return its index (with boundary validatsion)

This method takes a direction in form of an angular pair and searches the grid for the nearest neighbouring record (grid point). The distance measure is the angle on the great circle (spherical law of cosines).

Note: The method always returns a valid record index, even if the angular pair points outside the spherical grid (e.g. consider boundaries). Thereby we maintain a consistent behaviour. You can check if the point was within the boundaries using the bOutOfBounds argument.

Parameters

[in]	iView	The view that should be used for the given pair of angles, one of DAFF_VIEWS
[in]	fAngle1Deg	First angle (Phi or Alpha, depending on view)
[in]	fAngle2Deg	Second angle (Theta or Beta, depending on view)
[out]	iRecordIndex	Index that corresponds to this pair of angles
[out]	bOutOfBounds	Indicator if requested direction was out of bounds (true in this case)

Implemented in DAFFContentDFTRealization, and DAFFReaderImpl.

virtual DAFFReader* DAFFContent::getParent ( ) const

pure virtual

Returns the parent reader.

Implemented in DAFFReaderImpl, and DAFFContentDFTRealization.

virtual const DAFFProperties* DAFFContent::getProperties ( ) const

pure virtual

Returns the properties.

Implemented in DAFFContentDFTRealization, and DAFFReaderImpl.

virtual int DAFFContent::getRecordCoords	(	int	iRecordIndex,
		int	iView,
		float &	fAngle1Deg,
		float &	fAngle2Deg
	)		const

pure virtual

Determines the spherical coordinates of a record (grid point on spherical regular grid)

Parameters

[in]	iRecordIndex	The index of the record on regular spherical grid
[in]	iView	The view that should be used for the given pair of angles, one of DAFF_VIEWS
[out]	fAngle1Deg	First angle that corresponds to this index (Phi or Alpha, depending on view)
[out]	fAngle2Deg	Second angle that corresponds to this index (Theta or Beta, depending on view)

Returns: DAFF_NO_ERROR on success, another DAFF_ERROR otherwise

Implemented in DAFFContentDFTRealization, and DAFFReaderImpl.

virtual const DAFFMetadata* DAFFContent::getRecordMetadata ( int iRecordIndex ) const

pure virtual

Returns the metadata of a record.

Note: The method always returns a valid DAFFMetadata, even if there is none specified in the file. Thereby we maintain a consistent behaviour. Metadata may therefore be empty.

Parameters

[in] iRecordIndex The index of the record on regular spherical grid

Returns: The const pointer to metadata

Implemented in DAFFContentDFTRealization, and DAFFReaderImpl.

virtual void DAFFContent::transformAnglesD2O	(	float	fAlphaDeg,
		float	fBetaDeg,
		float &	fAzimuthDeg,
		float &	fElevationDeg
	)		const

pure virtual

Transforms data spherical coordinates into object spherical coordinates.

This methods takes an angular pair (alpha, beta) in data spherical coordinates (DSC) and transforms it into the equivalent direction expressed in object spherical coordinates (OSC) as an angular pair (azimuth, elevation).

Parameters

[in]	fAlphaDeg	Alpha angle in the DSC [degrees] (input)
[in]	fBetaDeg	Beta angle in the DSC [degrees] (input)
[out]	fAzimuthDeg	Azimuthal angle in the OSC [degrees] (output)
[out]	fElevationDeg	Elevation angle in the OSC [degrees] (output)

Implemented in DAFFContentDFTRealization, and DAFFReaderImpl.

virtual void DAFFContent::transformAnglesO2D	(	float	fAzimuthDeg,
		float	fElevationDeg,
		float &	fAlphaDeg,
		float &	fBetaDeg
	)		const

pure virtual

Transforms object spherical coordinates into data spherical coordinates.

This methods takes an angular pair (alpha, beta) in object spherical coordinates (OSC) and transforms it into the equivalent direction expressed in data spherical coordinates (DSC) as an angular pair (azimuth, elevation).

Parameters

[in]	fAzimuthDeg	Azimuthal angle in the OSC [degrees] (input)
[in]	fElevationDeg	Elevation angle in the OSC [degrees] (input)
[out]	fAlphaDeg	Alpha angle in the DSC [degrees] (output)
[out]	fBetaDeg	Beta angle in the DSC [degrees] (output)

Implemented in DAFFContentDFTRealization, and DAFFReaderImpl.

The documentation for this class was generated from the following file:

C:/dev/ExternalLibs/OpenDAFF/opendaff-v1.7/opendaff_withcred/include/DAFFContent.h
