Base class for scene graph nodes. More...

#include <DAFFVizSGNode.h>

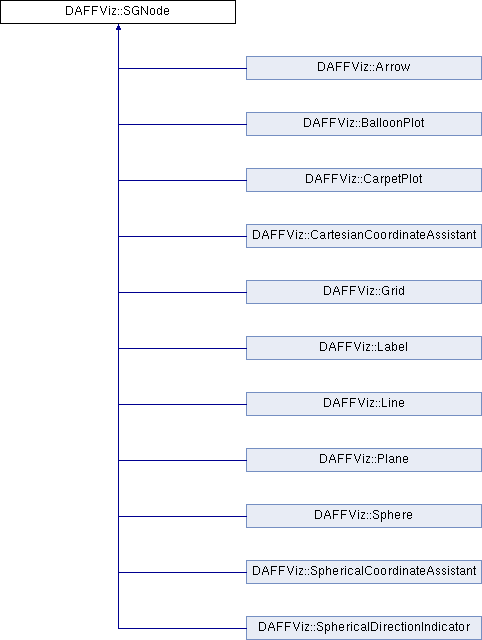

Inheritance diagram for DAFFViz::SGNode:

Public Member Functions
	SGNode (DAFFViz::SGNode *pParentNode=NULL)
	Constructor with optional linking to a parent node. More...

virtual	~SGNode ()
	Destructor. More...

DAFFViz::SGNode *	GetRootNode () const
	Traverses up to the root (recursively) and returns the node pointer. More...

DAFFViz::SGNode *	GetParentNode () const
	Returns the parent node pointer. More...

bool	HasParentNode () const
	Returns true if the node is appended to a parent node. More...

bool	IsRoot () const
	Returns true if the node is a root node (... has no parent node) More...

bool	HasChildNodes () const
	Returns true if the node combines one or more child nodes. More...

bool	IsLeaf () const
	Returns true if the node appears as a leaf node (... has no child nodes) More...

const DAFFViz::SGNode *	GetChildNode (int iIndex) const
	Returns the pointer to the child node of given index (for const correctness) More...

DAFFViz::SGNode *	GetChildNode (int iIndex)
	Returns the pointer to the child node of given index. More...

void	GetChildNodes (std::vector< const DAFFViz::SGNode * > &vpChildren) const
	Returns all the pointers to the child nodes (for const correctness, clears vector if no childs available) More...

void	GetChildNodes (std::vector< DAFFViz::SGNode * > &vpChildren)
	Returns all the pointers to the child nodes (clears vector if no childs available) More...

bool	AddChildNode (DAFFViz::SGNode *pChild)
	Appends a single child node. More...

bool	AddChildNodes (const std::vector< DAFFViz::SGNode * > &vpChildren)
	Appends a vector child nodes. More...

bool	RemoveChildNode (DAFFViz::SGNode *pChild)
	Removes a single child node. More...

bool	RemoveChildNodes (const std::vector< DAFFViz::SGNode * > &vpChildren)
	Removes a vector of child nodes. More...

void	GetPosition (double &x, double &y, double &z) const
	Position setter (unit is meter) More...

void	SetPosition (double x, double y, double z)
	Position getter (unit is meter) More...

void	GetOrientation (double &dRotXDeg, double &dRotYDeg, double &dRotZDeg) const
	Orientation getter (angles in [°]) More...

void	SetOrientation (double dRotXDeg, double dRotYDeg, double dRotZDeg)
	Sets the orientation of the node assembly based on world coordinate axis (angles in [°]) More...

void	SetOrientationYPR (double dYawDeg, double dPitchDeg, double dRollDeg)
	Sets the orientation of the node assembly based on yaw, pitch and roll angles around own coordinate axis (angles in [°]) More...

void	GetOrientationYPR (double &dYawDeg, double &dPitchDeg, double &dRollDeg)
	Orientation getter of the node assembly based on yaw, pitch and roll angles around own coordinate axis (angles in [°]) More...

void	SetOrientationVU (double vx, double vy, double vz, double ux, double uy, double uz)
	Sets the orientation of the node assembly based on view- and up-vectors. More...

void	GetOrientationVU (double &vx, double &vy, double &vz, double &ux, double &uy, double &uz)
	Returns the orientation of the node assembly based on view- and up-vectors. More...

void	GetScale (double &sx, double &sy, double &sz) const
	Scale getter. More...

void	SetScale (double sx, double sy, double sz)
	Scale setter. More...

virtual void	SetVisible (bool bVisible)
	Set visibility. More...

virtual bool	IsVisible () const
	Returns true if the node is visible. More...

Protected Member Functions
void	AddActor (vtkSmartPointer< vtkActor > pActor)
	Add a VTK actor to the node. More...

void	RemoveActor (vtkSmartPointer< vtkActor > pActor)
	Remove a VTK actor from the assembly of the node. More...

void	AddAssembly (vtkSmartPointer< vtkAssembly > pAssembly)
	Add a VTK assembly to the node. More...

void	RemoveAssembly (vtkSmartPointer< vtkAssembly > pAssembly)
	Release an assembly from the assembly of the node. More...

virtual void	OnSetFollowerCamera (vtkSmartPointer< vtkCamera > pCamera)
	Set active camera for followers. More...

Friends
class	VTKDAFFVizWindow

class	QDAFFVTKWidget

class	QtDAFFVizTestWindow

Detailed Description

Base class for scene graph nodes.

This class defines the base class for all nodes within an DAFFViz scene graph. It implements basic functionality, like the scene graph tree and operations. Internally it projects the DAFFViz scene graph onto a matching VTK scene assembly making it possible to use VTK objects in the classical scene graph way. DAFFViz includes subclasses for common objects (cube, cylinder, sphere and so on). But the SGNode design is flexible to incorporate any VTK object into the DAFFViz hierarchy.

The tree operations include modification of the scene graph (adding/removing child nodes, traversal, etc.). Moreover each node implements a common set of transformation operations (translation, rotation, scaling), which is applicable to all node implementations.

The usage of a node in your tree structure has strict rules. Any scene graph node may only be member of one parent scene graph. Therefore each scene graph node has a defined identity and may not be cloned/copied during runtime.

Any transformation on a node will treat the subtree (if node has child nodes) as a fixed single object. For instance you want to create a table, then you might want to join the desktop and the legs to form a simple table which then can be placed and rotated within the scene as one object.

Nodes that only group other nodes does not have material properties, e.g. no color. You have to colorize the leaf nodes which as a rule are derived objects of the SGNode class. Those leaves implement the appearing objects like cubes, cylinders and so on.

If you want to use the scene graph tree, you normally do it like this: Create a scene root node. Add children like primitive objects or create your own node by copying from the provided classes and fabricate any geometric that is possible with VTK. You can also group DAFFViz primitive objects to form a more complicated construction and append this to your scene graph root or any subtree. At the very end you will apply the scene graph root to your DAFFViz::QtDAFFWidget which will render your own scene and display it in your Qt application.

Definition at line 67 of file DAFFVizSGNode.h.

Constructor & Destructor Documentation

DAFFViz::SGNode::SGNode ( DAFFViz::SGNode * pParentNode = NULL )

Constructor with optional linking to a parent node.

Generates a node and connects it with the given parent node [optional]

Parameters

[in] pParentNode Parent scene graph node of this child

Definition at line 18 of file DAFFVizSGNode.cpp.

DAFFViz::SGNode::~SGNode ( )

virtual

Destructor.

Note: This destructor automatically frees all objects within its subtree.

Definition at line 27 of file DAFFVizSGNode.cpp.

Member Function Documentation

void DAFFViz::SGNode::AddActor ( vtkSmartPointer< vtkActor > pActor )

protected

Add a VTK actor to the node.

Will assert if the pointer is NULL in debug mode.

Parameters

[in] pActor Pointer to VTK actor

Definition at line 505 of file DAFFVizSGNode.cpp.

void DAFFViz::SGNode::AddAssembly ( vtkSmartPointer< vtkAssembly > pAssembly )

protected

Add a VTK assembly to the node.

Will assert if the pointer is NULL in debug mode.

Parameters

[in] pAssembly Pointer to VTK assembly

Definition at line 524 of file DAFFVizSGNode.cpp.

bool DAFFViz::SGNode::AddChildNode ( DAFFViz::SGNode * pChild )

Appends a single child node.

Will return true if successful, false if the given Child is not a root node.

Parameters

[in] pChild Adds a child to this node

Returns: True, if possible, false, if child node already has a parent (is not a root node)

See also: isRoot() hasParentNode()

Definition at line 129 of file DAFFVizSGNode.cpp.

bool DAFFViz::SGNode::AddChildNodes ( const std::vector< DAFFViz::SGNode * > & vpChildren )

Appends a vector child nodes.

Will return true if successful, false if any given Child is not a root node, though it will continue appending the other given nodes.

Parameters

[in] vpChildren Adds the children to this node

Returns: True, if possible for all, false, if any child node already has a parent (is not a root node)

See also: isRoot() hasParentNode()

Definition at line 164 of file DAFFVizSGNode.cpp.

const DAFFViz::SGNode * DAFFViz::SGNode::GetChildNode ( int iIndex ) const

Returns the pointer to the child node of given index (for const correctness)

Parameters

[in] iIndex Index number of child node

Returns: Const pointer to child node

Definition at line 86 of file DAFFVizSGNode.cpp.

DAFFViz::SGNode * DAFFViz::SGNode::GetChildNode ( int iIndex )

Returns the pointer to the child node of given index.

Parameters

[in] iIndex Index number of child node

Returns: Pointer to child node

Definition at line 96 of file DAFFVizSGNode.cpp.

void DAFFViz::SGNode::GetChildNodes ( std::vector< const DAFFViz::SGNode * > & vpChildren ) const

Returns all the pointers to the child nodes (for const correctness, clears vector if no childs available)

Parameters

[out] vpChildren Vector of const pointers to child nodes

Definition at line 106 of file DAFFVizSGNode.cpp.

void DAFFViz::SGNode::GetChildNodes ( std::vector< DAFFViz::SGNode * > & vpChildren )

Returns all the pointers to the child nodes (clears vector if no childs available)

Parameters

[out] vpChildren Vector of pointers to child nodes

Definition at line 118 of file DAFFVizSGNode.cpp.

void DAFFViz::SGNode::GetOrientation	(	double &	dRotXDeg,
		double &	dRotYDeg,
		double &	dRotZDeg
	)		const

Orientation getter (angles in [°])

Corresponds to euler angles with first rotation around z axis, then x, then y. Orientations are right-handed.

Parameters

[out]	dRotXDeg	X axis rotation value
[out]	dRotYDeg	Y axis rotation value
[out]	dRotZDeg	Z axis rotation value

See also: SetOrientation()

Definition at line 214 of file DAFFVizSGNode.cpp.

void DAFFViz::SGNode::GetOrientationVU	(	double &	vx,
		double &	vy,
		double &	vz,
		double &	ux,
		double &	uy,
		double &	uz
	)

Returns the orientation of the node assembly based on view- and up-vectors.

Parameters

[out]	vx	X axis view vector value
[out]	vy	Y axis view vector value
[out]	vz	Z axis view vector value
[out]	ux	X axis up vector value
[out]	uy	Y axis up vector value
[out]	uz	Z axis up vector value

See also: SetOrientationVU()

Definition at line 367 of file DAFFVizSGNode.cpp.

void DAFFViz::SGNode::GetOrientationYPR	(	double &	dYawDeg,
		double &	dPitchDeg,
		double &	dRollDeg
	)

Orientation getter of the node assembly based on yaw, pitch and roll angles around own coordinate axis (angles in [°])

Will first rotate around -z axis (roll), then x (pitch), then y (yaw)

Parameters

[out]	dYawDeg	Yaw rotation value(first rotation around Y)
[out]	dPitchDeg	Pitch rotation value(first rotation around X)
[out]	dRollDeg	Roll rotation value(first rotation around - Z)

See also: SetOrientationYPR()

Definition at line 405 of file DAFFVizSGNode.cpp.

DAFFViz::SGNode * DAFFViz::SGNode::GetParentNode ( ) const

Returns the parent node pointer.

Returns: Parent scene graph node pointer, NULL if root node

See also: HasParentNode()

Definition at line 61 of file DAFFVizSGNode.cpp.

void DAFFViz::SGNode::GetPosition	(	double &	x,
		double &	y,
		double &	z
	)		const

Position setter (unit is meter)

Parameters

[out]	x	X axis value
[out]	y	Y axis value
[out]	z	Z axis value

See also: SetPosition()

Definition at line 198 of file DAFFVizSGNode.cpp.

DAFFViz::SGNode * DAFFViz::SGNode::GetRootNode ( ) const

Traverses up to the root (recursively) and returns the node pointer.

Returns: Root scene graph node pointer

Definition at line 55 of file DAFFVizSGNode.cpp.

void DAFFViz::SGNode::GetScale	(	double &	sx,
		double &	sy,
		double &	sz
	)		const

Scale getter.

Parameters

[out]	sx	X axis scale value
[out]	sy	Y axis scale value
[out]	sz	Z axis scale value

See also: SetScale()

Definition at line 471 of file DAFFVizSGNode.cpp.

bool DAFFViz::SGNode::HasChildNodes ( ) const

Returns true if the node combines one or more child nodes.

Returns: True, if node has child nodes (is not a leaf node)

Definition at line 76 of file DAFFVizSGNode.cpp.

bool DAFFViz::SGNode::HasParentNode ( ) const

Returns true if the node is appended to a parent node.

Returns: True, if node has a parent (is not a root node)

Definition at line 66 of file DAFFVizSGNode.cpp.

bool DAFFViz::SGNode::IsLeaf ( ) const

Returns true if the node appears as a leaf node (... has no child nodes)

Returns: True, if node is a leaf nodes (has no child nodes)

Definition at line 81 of file DAFFVizSGNode.cpp.

bool DAFFViz::SGNode::IsRoot ( ) const

Returns true if the node is a root node (... has no parent node)

Returns: True, if node is a root node (has no parent)

Definition at line 71 of file DAFFVizSGNode.cpp.

bool DAFFViz::SGNode::IsVisible ( ) const

virtual

Returns true if the node is visible.

If this node is visible, the method will return true. Note, that this does not actually mean, that the child nodes are visible, too.

Returns: True if visible, false if hidden

See also: SetVisible()

Reimplemented in DAFFViz::Arrow, DAFFViz::Sphere, DAFFViz::Line, DAFFViz::Label, DAFFViz::Plane, and DAFFViz::Grid.

Definition at line 486 of file DAFFVizSGNode.cpp.

void DAFFViz::SGNode::OnSetFollowerCamera ( vtkSmartPointer< vtkCamera > pCamera )

protectedvirtual

Set active camera for followers.

Parameters

[in] pCamera VTK camera followers shall face

Definition at line 542 of file DAFFVizSGNode.cpp.

void DAFFViz::SGNode::RemoveActor ( vtkSmartPointer< vtkActor > pActor )

protected

Remove a VTK actor from the assembly of the node.

Will assert if the pointer is NULL in debug mode.

Parameters

[in] pActor Pointer to VTK actor

Definition at line 514 of file DAFFVizSGNode.cpp.

void DAFFViz::SGNode::RemoveAssembly ( vtkSmartPointer< vtkAssembly > pAssembly )

protected

Release an assembly from the assembly of the node.

Will assert if the pointer is NULL in debug mode.

Parameters

[in] pAssembly Pointer to VTK assembly

Definition at line 533 of file DAFFVizSGNode.cpp.

bool DAFFViz::SGNode::RemoveChildNode ( DAFFViz::SGNode * pChild )

Removes a single child node.

Will return true if successful, false if the given child node is non existent.

Parameters

[in] pChild Child node to be removed

Returns: True on success, false if child is not existent.

Definition at line 171 of file DAFFVizSGNode.cpp.

bool DAFFViz::SGNode::RemoveChildNodes ( const std::vector< DAFFViz::SGNode * > & vpChildren )

Removes a vector of child nodes.

Will return true if successful, false if any given child node is non existent, though it will continue removing the other given nodes.

Parameters

[in] vpChildren Vector of child nodes to be removed

Returns: True on success for all, false if any child is not existent.

Definition at line 191 of file DAFFVizSGNode.cpp.

void DAFFViz::SGNode::SetOrientation	(	double	dRotXDeg,
		double	dRotYDeg,
		double	dRotZDeg
	)

Sets the orientation of the node assembly based on world coordinate axis (angles in [°])

Will first rotate around z axis, then x, then y. Orientations are right-handed.

Parameters

[in]	dRotXDeg	X axis rotation value
[in]	dRotYDeg	Y axis rotation value
[in]	dRotZDeg	Z axis rotation value

See also: GetOrientation()

Definition at line 222 of file DAFFVizSGNode.cpp.

void DAFFViz::SGNode::SetOrientationVU	(	double	vx,
		double	vy,
		double	vz,
		double	ux,
		double	uy,
		double	uz
	)

Sets the orientation of the node assembly based on view- and up-vectors.

Parameters

[in]	vx	X axis view vector value
[in]	vy	Y axis view vector value
[in]	vz	Z axis view vector value
[in]	ux	X axis up vector value
[in]	uy	Y axis up vector value
[in]	uz	Z axis up vector value

See also: GetOrientationVU()

Definition at line 316 of file DAFFVizSGNode.cpp.

void DAFFViz::SGNode::SetOrientationYPR	(	double	dYawDeg,
		double	dPitchDeg,
		double	dRollDeg
	)

Sets the orientation of the node assembly based on yaw, pitch and roll angles around own coordinate axis (angles in [°])

Will first rotate around -z axis (roll), then x (pitch), then y (yaw)

Parameters

[in]	dYawDeg	Yaw rotation value (first rotation around Y)
[in]	dPitchDeg	Pitch rotation value (first rotation around X)
[in]	dRollDeg	Roll rotation value (first rotation around -Z)

See also: GetOrientationYPR()

Definition at line 230 of file DAFFVizSGNode.cpp.

void DAFFViz::SGNode::SetPosition	(	double	x,
		double	y,
		double	z
	)

Position getter (unit is meter)

Parameters

[in]	x	X axis value
[in]	y	Y axis value
[in]	z	Z axis value

See also: GetPosition()

Definition at line 206 of file DAFFVizSGNode.cpp.

void DAFFViz::SGNode::SetScale	(	double	sx,
		double	sy,
		double	sz
	)

Scale setter.

Parameters

[in]	sx	X axis scale value
[in]	sy	Y axis scale value
[in]	sz	Z axis scale value

See also: SetScale()

Definition at line 479 of file DAFFVizSGNode.cpp.

void DAFFViz::SGNode::SetVisible ( bool bVisible )

virtual

Set visibility.

The method will traverse the subtree and set the visibility of all nodes. If you want to hide a leaf node or a subtree, you have to manually hide it afterwards.

Parameters

[in] bVisible True for visible, false for hidden

See also: IsVisible()

Reimplemented in DAFFViz::Arrow, DAFFViz::CartesianCoordinateAssistant, DAFFViz::SphericalCoordinateAssistant, DAFFViz::Sphere, DAFFViz::Line, DAFFViz::Label, DAFFViz::Plane, and DAFFViz::Grid.

Definition at line 491 of file DAFFVizSGNode.cpp.

Friends And Related Function Documentation

friend class QDAFFVTKWidget

friend

Definition at line 401 of file DAFFVizSGNode.h.

friend class QtDAFFVizTestWindow

friend

Definition at line 402 of file DAFFVizSGNode.h.

friend class VTKDAFFVizWindow

friend

Definition at line 400 of file DAFFVizSGNode.h.

The documentation for this class was generated from the following files:

C:/dev/ExternalLibs/OpenDAFF/opendaff-v1.7/opendaff_withcred/include/daffviz/DAFFVizSGNode.h
C:/dev/ExternalLibs/OpenDAFF/opendaff-v1.7/opendaff_withcred/src/daffviz/DAFFVizSGNode.cpp

Public Member Functions

Protected Member Functions

Friends

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Friends And Related Function Documentation
